LT000071

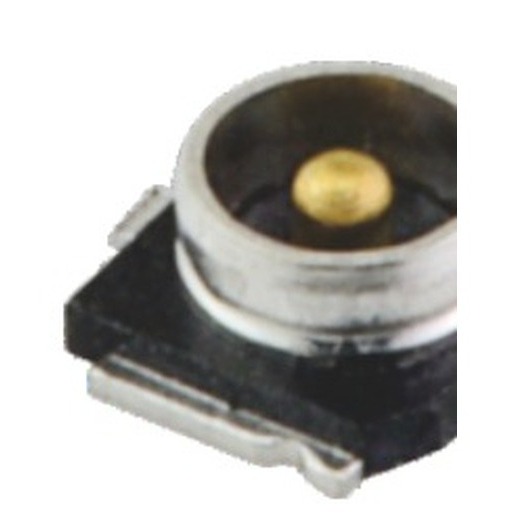

USS RF I Receptacle
A USS RF I Receptacle from the USS RF Receptacle family — L3.10*W3.00*H1.25mm, 50Ω, 3 Solder-pad, Mating Height = 2.00mm (with 0097), 2.50mm(with 0089), Shell Ag Plated, Housing Black. In stock through LTconnector's connector supply chain, for cross-reference and second-source / equivalent-part sourcing, verified against I-PEX 20314-001E-01, HRS U.FL-R-SMT, Gigalane CMJ-S01-001.
Spec. Description
L3.10*W3.00*H1.25mm, 50Ω, 3 Solder-pad, Mating Height = 2.00mm (with 0097), 2.50mm(with 0089), Shell Ag Plated, Housing Black
Compatible / Mating Connector's P/N
HRS U.FL-R-SMT
Series
Cross-reference / equivalent parts
| Brand | Original P/N |
|---|---|
| Gigalane | CMJ-S01-001 |
| I-PEX | 20314-001E-01 |
